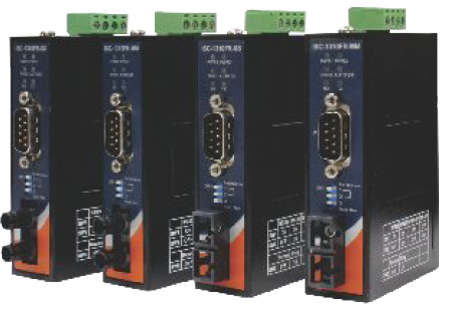

Protocol Converter Media Converter Fiber Optic

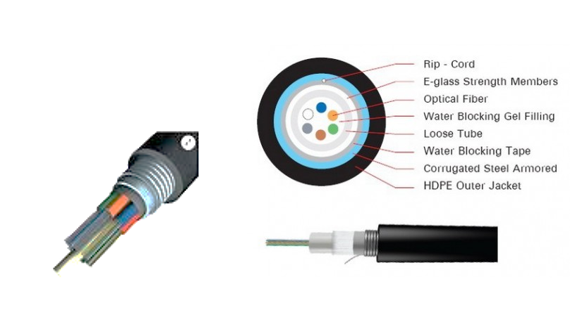

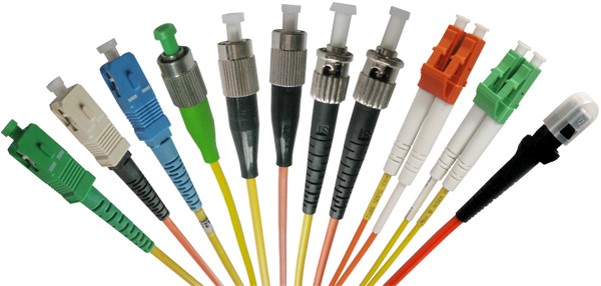

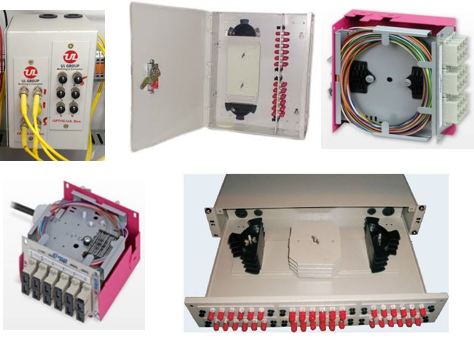

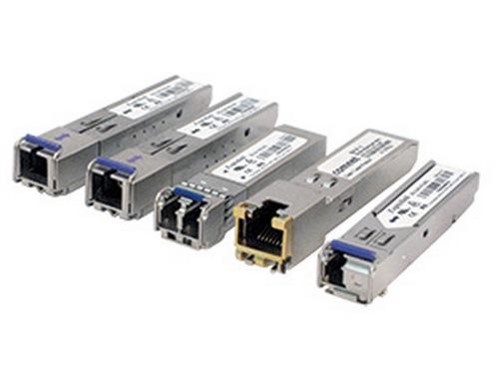

Fiber Optic

Protocol Converter

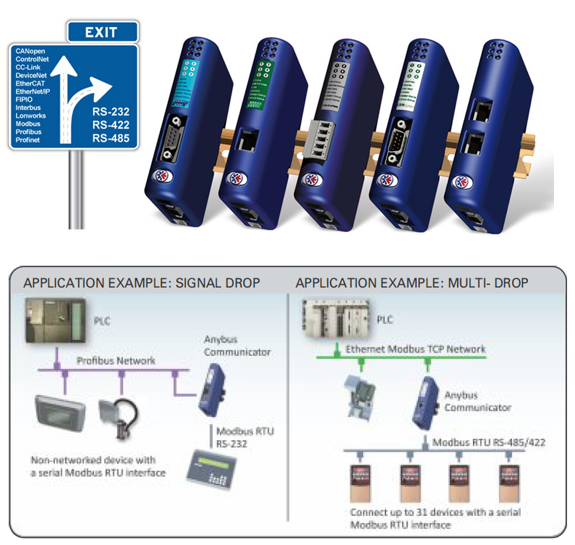

Communicator

Certified and proven Communicator family connecting automation devices via their Serial interface RS-232/422/485/ASCII/Modbus/ RTU/DF1/Customize Protocol To Fieldbus and Industrial Ethernet protocols.
Possibility to connect up-to 31 nodes via one Communicator
Requires no hardware or software changes to be made to the connected device
Password protection prevents unauthorized upload and download of configurations
Compatible with PLC from leading manufacturers such as Siemens, Rockwell, Schneider etc.
Available in Profibus, Profinet, Device Net, Ethernet/IP, Modbus TCP& many more
Included “Anybus Configuration Manager” with

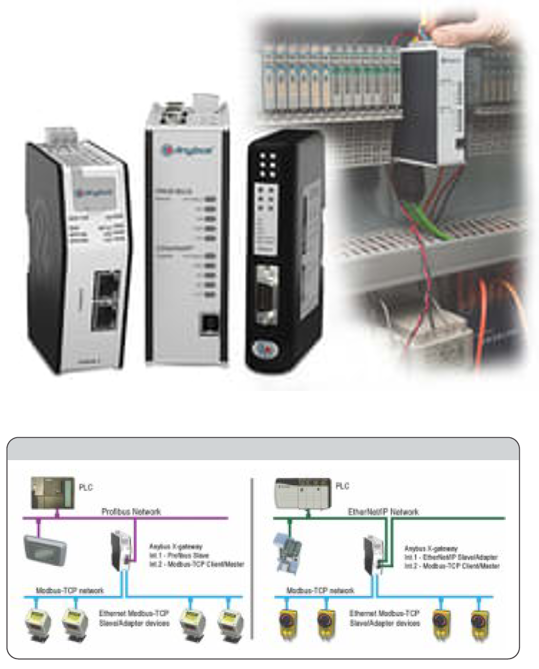

X-Gateway

The X-gateway allows you to seamlessly inter- connect PLC control systems and their connected devices
The data transmission between the two networks is completely transparent.
Over 300 different network combination (Master, slave, Adapter, I/O device, Server)
Connects different PLC system (Siemens, Rockwell, Schneider, Mitsubishi, Omron, Beckhoff)
Max 512Bytes Of Input and 512 bytes of output data
IT functions such as dynamic WEB Server, supporting downloadable customer specific web pages.
Fast, dynamic transfer of Fieldbus data to e.g. SCADA/HMI / Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server
Remote monitoring and diagnostic feature for most Ethernet version Via an Integrated WEB Sever
Anybus Master Configuration tool included free of charge with a Profibus, Device Net or Ethernet/IP Master/Scanner.

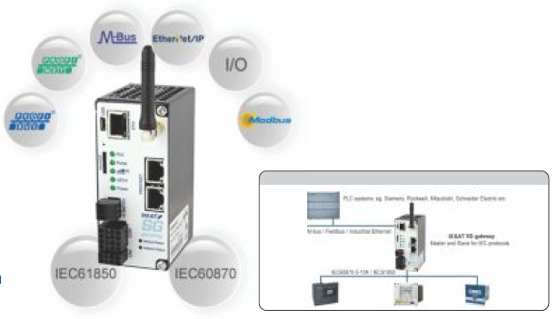

IEC Gateway

Enable easy remote control and management of electrical systems
Support IEC 61850 client/server, GOOSE, proxy gateway, IEC 60870-5-104 client/server and VHPready
Provide Modbus-TCP client/server and Modbus-RTU master/slave interfaces
Enable SNMP, SNTP, and cloud connectivity
Provide I/O, M-Bus, PROFIBUS, PROFINET and EtherNet / IP interfaces
Are safe – firewall, OpenVPN & password protection
Support IEC 60870-5-104 redundancy acc. edition 2

BACnet Gateway

Enables central control and supervision of Modbus devices within Building Automation and HVAC applications.
Handles conversion between Modbus (RTU & TCP) and BACnet (IP & MS/TP).
BTL certification. And Supports BACnet version 12.
Manages Modbus TCP and Modbus RTU simultaneously.
Connects up to 254 Modbus devices to BACnet (processing up to 3000 Modbus registers).
A simple yet powerful config tool allows commissioning, debugging and troubleshooting.
Import and export to Excel for further signal processing.
Comes in a plastic housing that mounts on 35-mm DIN-rail.
Configuration could be done through IP or USB port LED indicators provide communication status on both the Ethernet and serial ports.

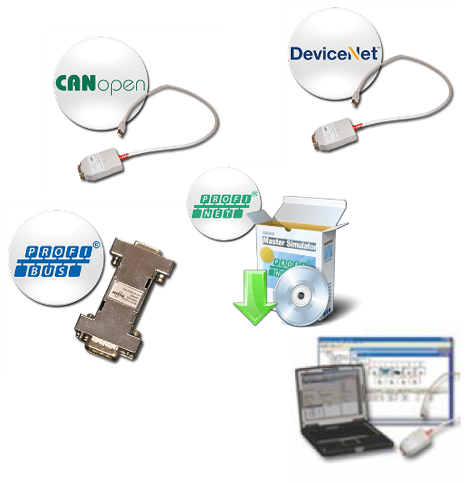

Master Simulator

The Master Simulator is an easy to use tool to test your Profibus, DeviceNet, CANopen, profinet slave/adapter
Easy-to-use test and diagnostics tool.
No programming required
It's ideal for test wiring for input and output
No need of external power supply
Ideal for portable usage with laptop and notebook
RS232 adapter, serial cable, CD and Software for Profibus DP/DPV1
Serial USB adapter, CD and software for DeviceNet, CANopen
Ethernet Cable & Software for Profinet.

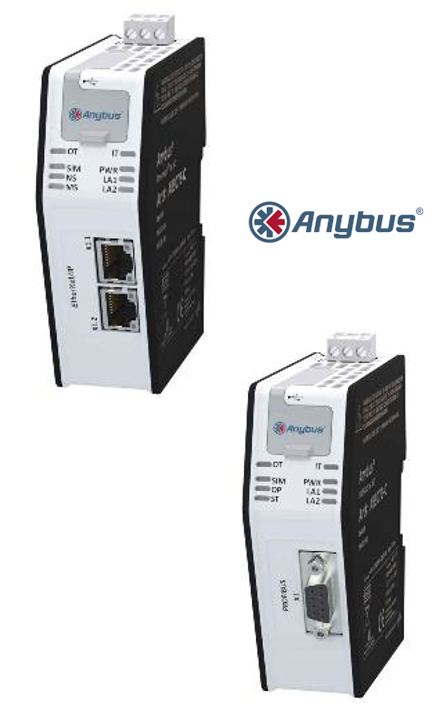

IT/OT Gateways

Enabling communication between the factory floor & IT systems.
NET Bridge enables factory-floor data from PROFINET, ROFIBUS, EthernNet/IP or EtherCAT to be presented to .NET applications.
As a .NET programmer, you can get data directly from a PLC systemand use this data in applications for statistics, analysis or maintenance.
System for connecting one or multiplePLCs to IT/software systems.
Send and receive data from each side.
PLC programmer is in full control – PLC access via fieldbus or Ethernet slave interface.
IT style interface: customized names, receive events and post structured data via C# / .NET interface.
Automated configuration – system generates fully customized C# API and PLC configuration (GSDML etc.), with names and data types according to parameter list agreed between software programmer and PLC programmer.
Dual Port switched Ethernet allows daisy chaining on all Ethernet ports.
Robust design for optimized cabling, DIN-rail or wall mount options

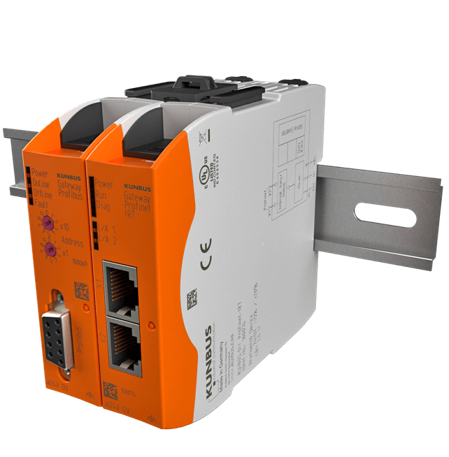

Modular Gateway Solutions

Modular Gateway enables continuous and reliable communication between different networks and systems.
Diversely combinable with different protocols
Simple plug-in connection for bus modules by means of plug-in jumper
Customized solutions are also possible.
The Modular Gateways are equipped with an integrated web server; program parts are updated via FTP server.
Connection for power supply via screw-type terminal (optional: spring-loaded terminal)
Max. power < 3 Watts
Throughput max. 512 bytes. Installation on a DIN rail

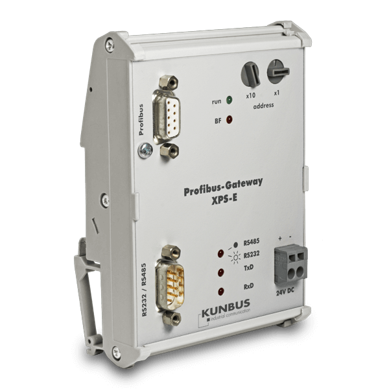

Gateway for Process Automation

Intelligent, low-cost and User friendly.
Serial configuration tool not required.
All connections are by D-SUB connectors
The PROFIBUS station address is set via coding switches.
Configured as Profibus Slave using available GSD File.
Possible to integrate devices with MODBUS ASCII/RTU interface, typically they will only have an RS232, RS422 or RS485 interface.
Supported PROFIBUS Protocol Versions: DP Slave
Interfaces: Serial Profibus RS232/422/485/MODBUS/ASCII/RTU RS485 (isolated)

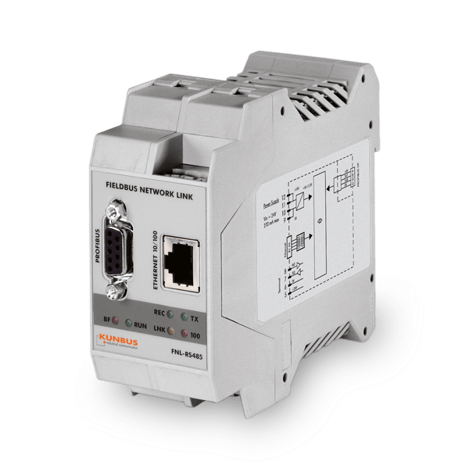

Fieldbus Network link of Profibus & Ethernet

The compact 24 Volt hat rail module The small sized, Ethernet based hat rail module allows the connection to all copper based PROFIBUS DP networks.

Network Configurator (CNC) for the integration of FNL in your network
PROFIBUS configuration tool CONFIGURATOR III with extensive download, analysis and control functions
Programming interface: The TCP/IP socket interface provides transparent exchange of the DP Slaves' process and diagnostic data as well as all DP/DPV1 Master class 1/2 and DP Slave services
No more hardware/driver installation with its typical related problems
Access to the respective fieldbus from any arbitrary network PC
Add-on software: OPC Server, FDT 1.2 Communication DTM, LabVIEW™ Driver for FNL.

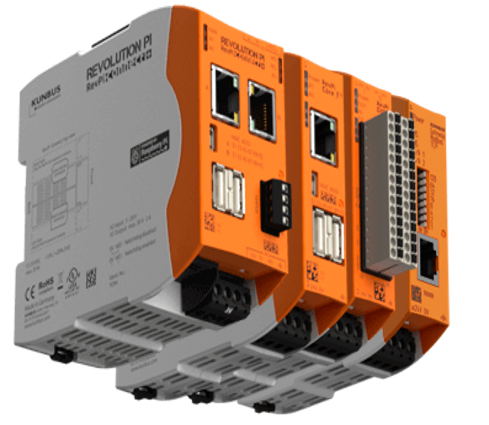

Revolution PI

The open source IIoT gateway RevPi Connect gives users maximum freedom when implementing IIoT projects due to its open platform concept (including full root rights). RevPi Connect is based on the Raspberry Pi Compute Module 3 and features a 1.2 GHz quad-core processor, 1 GB RAM and up to 32 GB eMMC flash memory. A Real Time Clock (RTC) with 24 h buffering ensures that the device always knows what time it is, even in the event of a power failure. A specially modified Raspbian version with a real time patch is available as an operating system. Common IIoT protocols like MQTT and OPC UA are supported to transfer machine data directly to the Cloud.
