PLC/DCS Specific Field Interface Module

Analog Input Field Interface Module

• Module with fuse & surge protection having 2/4 wire selection
• Module with fuse & Fuse fail LED Indication having 2/4 wire selection
• Module with channel to channel 3-Way Isolation
• Redundant passive interface module with 2/4 wire selection
• Module with channel to channel 3-Way Isolation & 2/4-wire selection

Analog Output Field Interface Module

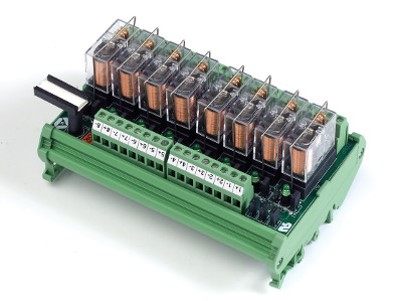

• Slim Relay Module 1C/O Pot free
• module with Fuse protection
• Module with fuse & fuse fail or wire open LED indication
• Module with channel to channel 3- way isolation
• Redundant Interface module with channel to channel 3- way isolation
• Redundant Interface module with channel to channel isolation & 2/4 wire selection.

Digital Input Field Interface Module

• Module with fuse & LED Indication
• Module with Relay Isolation & Fuse protection
• Module with Opto-Isolation 24VDC to 24VDC

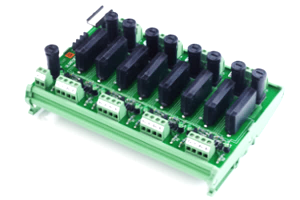

• Module with SSR 230VAC/110VAC to 24VDC
• Module with fuse & common fuse fail alarm contact
• Module with fuse & wire break
• Module with Relay Isolation & wire break
• Module with Slim Relays
• Module with TR-Disconnect
• Module with Auto-test & Redundancy

Digital Output Field Interface Module

• Slim Relay Module 1C/O Pot free
• Module with fuse & LED Indication
• Module with Relay Isolation & Fuse protection
• Module with Opto-Isolation 24VDC to 24VDC
• Digital Input Interface Module with SSR 230VAC/110VAC to 24VDC
• Module with fuse & common fuse fail alarm contact
• Module with fuse & wire break
• Module with Relay Isolation & wire break
• Module with Slim Relays
• Module with TR-Disconnect
• Module with Auto-test & Redundancy

UL Isolators & Transducers

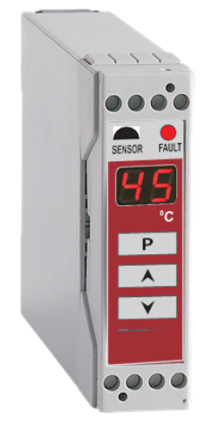

Temperature Monitoring Unit UL-TM50

• Slim, compact and rugged execution.
• Precision temperature indication.
• Provision to set alarm level.
• Relay change over contacts for alarm conditions.
• Analog signal retransmission of temperature value.
• Standard DIN rail mount execution.
• Built in electronic temperature sensor.
• High load driving capacity of retransmitted signal.
• AC power supply or with DC power (Optional).
• Industrial grade enclosure.
• Bright red digital Temperature readout.
• LED indication for temperature alarm condition.

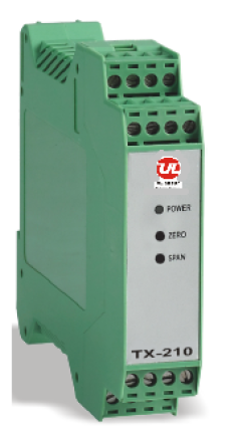

Temperature Transducer: ULTX-210 / ULTX212

• Optical & Galvanic Isolation between Input, Output & Power Supply.
• High accuracy and linearity to input signal
• Very low power consumption and heat dissipation
• Options of multiple [upto four] isolated outputs
• High load driving capacity of retransmitted signal
• Configurable output option of current / voltage
• Short-circuit / Open-circuit protection of outputs
• Front accessible Zero and Span calibration for outputs
• Digital Indication option with/without control relay outputs
• Auxiliary power for two-wire transmitters
• C or DC Power Supply options
• Rugged, industrial grade ABS enclosure
• Panel / Field / Hazardous area installation in IP65 execution
• Current limiting for I/O protection
• Customized outputs offered

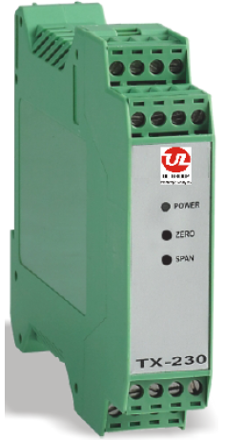

Current Signal Isolator: ULTX-230

• Optical & Galvanic Isolation between Input, Output & Power Supply.
• High load driving capacity of retransmitted signal
• Output signal options of current / voltage
• Short-circuit / Open-circuit protection of outputs
• Front accessible Zero and Span calibration for outputs
• Digital Indication option with/without control relay outputs
• Auxiliary power for two-wire transmitters
• Rugged, industrial grade ABS enclosure
• Panel / Field / Hazardous area installation in IP65 execution
• Current limiting for I/O protection
• Customized outputs offered

Panel Accessories / Module

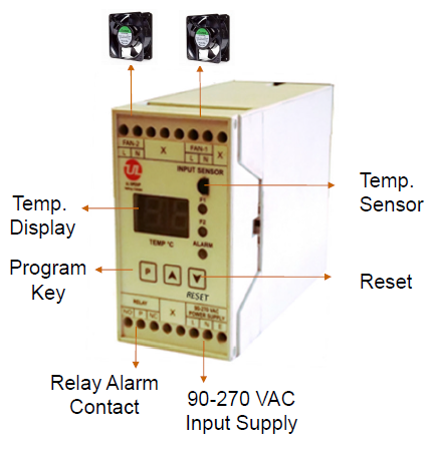

2 Fan Fail Detection Module

• Microcontroller based design.
• Auto Current Sending technology.
• 2-digit 7 segment LED display.
• Retransmission option 4-20mA.
• Universal Input 90-270VAC.
• Bi-colour LED's for Fan status.
• Over voltage protection.
• 2- External relays for fan fail or temp. fail.
• Din Rail Mountable.

4 Fan Fail Detection Module

• Microcontroller based design.
• Auto Current Sending technology.
• 2-digit 7 segment LED display.
• Retransmission option 4-20mA.
• Universal Input 90-270VAC.
• Bi-colour LED's for Fan status.
• Over voltage protection.
• 2- External relays for fan fail or temp. fail.
• Din Rail Mountable.

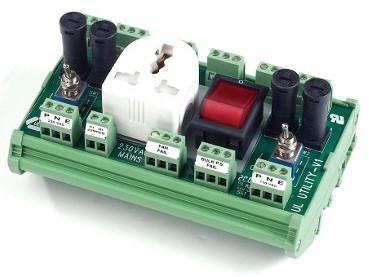

Utility Module

• One Incoming & two Outgoing Terminals for connection of front & rear Tube light.
• One Incoming & two outgoing terminal for connection of front & rear fan.
• Two Spare Terminals to take IN & OUT.

Power Distribution Module

Diode o-ring Mod. for SMPS Red.

Passive Interface Module

Interface Module - Elco/Idec to terminals

• Plug-in type: Connector EDAC male/female Available in 38, 56, 90 Position.
• Terminals*: Screw type suitable for 2.5Sq.mm conductor.
• PCB: Glass Epoxy double side PTH with Lacquer Coating.

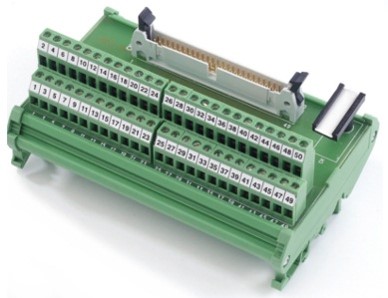

Interface Module - D-Sub to Terminals

• Plug-in type: D-Sub male/female available in Connector 9/15/25/37/50 Position.
• Terminals*: Screw type suitable for 2.5Sq.mm conductor.
• PCB: Glass Epoxy double side PTH with Lacquer Coating

Interface Module - FRC to Terminals

• Plug-in type: FRC/IDC Available in 16/20/26/34/40/50/64 positions.
• Terminals*: Screw type suitable for 2.5Sq.mm conductor.
• PCB: Glass Epoxy double side PTH with Lacquer Coating.

WIRING SOLUTIONS

CUSTOMIZED CABLE HARNESS

STP Cables

I/O Link Cables Module

Customize cables Harness

Hart Patch Cards/cables Harness

Weidmuller – Industrial Connectivity Solutions

POWER - Weidmuller – Industrial Connectivity Solutions

SIGNAL - Weidmuller – Industrial Connectivity Solutions
