Profibus

Profibus

One Stop Solutions for all your PROFIBUS needs!

Online Monitoring & Networking

ComBricks™ - The first PROFIBUS and PROFINET-based automation system that unites network components, permanent monitoring with ProfiTrace and remote I/O.
Combricks Monitoring & Networking in Profibus DP/PA, PROFINET, FF Protocol.
No need of any Software .
ProfiTrace OE - Remote monitoring in a web browser
The only product with an integrated oscilloscope for permanent PROFIBUS monitoring over Ethernet.

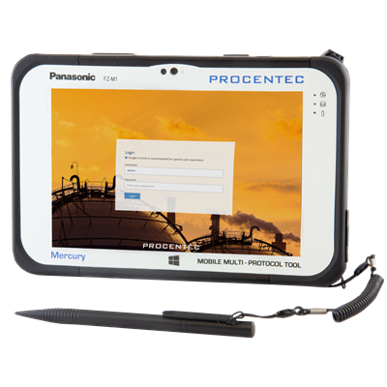

Procentec - Mercury

The PROCENTEC Mercury is a robust tablet which features our new cross platform software package. This device is perfect for troubleshooting, maintenance and monitoring Industrial Ethernet and PROFIBUS networks, through in-the-field-use of our software. The PROCENTEC Mercury enables you to gain insight into the health and possible faults in your industrial network. While developing this innovative product, the user was, and remains, the first focus. This means the PROCENTEC Mercury offers remote and wireless connection, and mobility anywhere and anyplace.

Master Redundancy Switch

PRS – Intelligent PROFIBUS DP Master Redundancy Switch
Top-hat rail based switch for the implementation of redundant PROFIBUS DP Master systems.
Allows the connection of two identical DP Masters to the DP Slaves.
Avoids galvanic contact between the DP Masters
Masters be configured with identical PROFIBUS addresses, making Multi Master mode unnecessary and excludes double address conflict.
In case of failure of the operational DP Master PRS physically switches over to the stand-by DP Master which seamlessly takes over the DP Slaves.

Multi-Port Repeater

ProfiHub B2+R, B5+R, B5+RD, X5 Is an Advanced Flexible, Robust network Component in Profibus as DP Repeater with Redundant Profibus Channels
If bus redundancy is enabled, 2 segments will form a redundant pair
Used in structure of Star/Tree Segment.
B5+RD it is equipped with an additional integrated micro ProfiTrace diagnostic unit. The ProfiHub offers a PROFIBUS DP slave device to transfer bus statistics and device event information to the PLC/DCS system.
X5 on each segment has customizable baudrate selection switch.
Status LED’s, Alarm Contacts
Diagnostic port for Monitoring on Each Channel
Integrated channel termination
Suitable for PROFIsafe and MPI apart from Profibus DP
Configurable grounding system
Redundant power supply
Hot slave insertion/removal during operation
Galvanically Isolated & Short circuit protection on each channel

Multi-Port Repeater – IP 20

The signals are restored in level, slope, and duty cycle.
All Baudarete Support Automatically
Profibus & MPI Both are supported
The status LEDs integrated for each segment provide a quick overview of the current bus status
Electrical isolation of all segments
Star network with independent segments.
Can be used for bus extension or as a spur line
Increase the number of participants.
DIP switch for switching off the individual segments and a switch for turning off all segments.
PROFIBUS connectors are required for connection to the PROFIBUS cable.

Multiport Repeater - IP 65

The ProfiHub A5 is equipped with 5 galvanic isolated transparent repeaters (offering 6 segments)
To save costs on plugs and offer flexibility, it contains screw terminals only.
PROFIBUS DP installations and enables it in IP 65 applications
Alarm Contact
Redundant power supply.
The status LEDs integrated for each segment provide a quick overview of the current bus status
With this product, you can create reliable, flexible and object-oriented DP installations

Multiport Repeater with FO Backbone

The ProfiHub B2FO2+ & B4FO2+ is a cost-effective solution to link PROFIBUS fiber optic to multiple RS 485 segments and vice versa.
Enables reliable applications where long cable distances and an isolation between devices and segments are required.
The massed junction of copper segments reduce expensive fiber optic couplers and create an objectoriented overview for the end user.
Fiber optic to multi RS 485 Segments coupler for Point-to-point, bus- and star configurations
2 Fiber channels MM with 4 ST/BFOC connectors for 3 km cable length
Multimode cable G62.5 / 125 (OM1) - 850 nm
No limit in cascading

Compact Repeater

Isolated Channels (Repeater Segment)
Used as bus extension or spur line
Used in MPI networks
Status LEDs per segment
Repeater function can be deactivated
Electrical isolation.
No Power supply.
Compact repeater to network
Models : Compact, Twin

Single Port Repeater

Increased RS 485 strength
Isolated Channels (Repeater Segment)
31 devices per segment, 1.2 Km cable length (depends on transmission speed)
No limit in cascading
Redundant DC power supply (19..28 VDC)
Integrated termination facilities (switches).
Configurable grounding system (direct or capacitive).
Screw terminals and DB9 connectors.
Hot slave insertion/removal during operation
Galvanically Isolated & Short circuit protection on each channel
Available in IP 20, IP 65

Active Terminator

Bus termination independent of terminal device due autonomous power supply
Power supply independent of bus nodes
Used as an active measuring point
Diagnostic LEDs to indicate the status of the power supply
Reliability & Flexibility provide Network.
Active power terminator to Idle voltage
Supply to active PROFIBUS components (Compact Repeater, NETLink, PROFIBUS diagnostic connector)
T1 comes with removable screw terminals and 1 DB9 connector
Redundancy: Power 1 OR 2

DP – DP Coupler

Interlinks two PROFIBUS DP networks and permits data transmission between the masters and the two DP networks.
Maximum size of the transmitted data: 244 Bytes I/P and 244 Bytes O/P data.
The DP/DP coupler is configured in the PLC/DCS software by means of a GSD file.
To get information of DP devices on Profibus.

Mobile Profibus Analyzer

This outstanding and portable tool is the most powerful mobile analyzer for PROFIBUS networks. Also an essential tool for maintenance and troubleshooting.
Easy to use and unites all required elements in one to detect several PROFIBUS faults.
USB Powered Device & Galvanic isolated Profibus interface
Live List: Colors make it easy
Message Recording: The absolute truth
Scope wave: The easiest oscilloscope ever
Report: We have proof
Bar Graph: The bar graph - is a useful Utility to get impression of overall signal quality of the network.
DP Master: Class 1 & 2 master, Without PLC /DCS Communicate Network
Profibus PA Probe Ultra: PA Diagnostic

Connector – Metallic Body

Available in 90, 0 , 35 Degree angled
Metalized housing
No loose parts
Integrated programming / diagnostic port
Integrated switchable terminating resistor
Screw terminals
With and Without LED Indication
Easy Connect and Screw connect facility
Optional DB9 with M12 Connectivity
Support Rs 485 Technology

Connector – M12

Male, 4, 5, and 8-Pole .
5 poles, B coding, especially suitable for Profibus signal cable
Field attachable connector, M12 male connector 4, 5, and 8-pole with threaded joint, shieldable, assembling with screw terminals.
Female, 4-, 5-, and 8-Pole
Field attachable connector, M12 female connector 4, 5 and 8-pole with threaded joint, shieldable, assembling with screw terminals.

Connector

Quick-connect technology Easy Connect®.
Visual connection control.
Heavy-Duty metal housing.
Transfer-rates of up to 100 Mbps
Easy to mount and meet the IP20 requirements
Models: 90 °/ 45° /180°, RJ45, Easy Connect®, 10/100 Mbps

PN/PN Coupler

Connect two PROFINET networks.
Enables data transmission between the controllers of the two networks.
Maximum size of the transmitted I/O data is 1,024 bytes.
No additional configuration software is necessary.

DP/PN Coupler

Connects your PROFIBUS to PROFINET.
Simple and uncomplicated connection is possible.
Maximum size of the transmitted data is 244 bytes of input.
And 244 bytes of output data.
Projected via GSD file and GSDML file.
No additional configuration software is necessary.

PN/CAN Coupler

CANopen Master according to CANopen® protocol DSP 301
Up to 126 CANopen slaves with up to 16 TPDOs / 16 RPDOs each
Up to 1420 bytes input and 1420 bytes output data on PROFINET
Up to 1 Mbit/s CAN bit rate
Media redundancy (MRP client)
Configuration via GSDML file

PN/EtherNet & PN/Modbus TCP Coupler

Very compact design for DIN rail / top hat rail mounting
Redundant power supplies
Galvanic isolation of the networks
Up to 1024 input/output data
300 configurable slots for PROFINET IO data
3 input and 3 output assemblies for EtherNet.
Supports the full ModbusTCP address space with free assignment of IO data
Supports multiple simultaneous ModbusTCP clients
Configuration only with GSDML file, no additional software required
MQTT Publisher on both network sides (PROFINET & ModbusTCP/ Ethernet IP)

Switch Managed (4, 8, 16 Port)

Prioritizing of the PROFINET frame traffic in the machine network
Integration into the automation network with GSDML file.
It is also possible to carry out a diagnosis and/or configuration via Telnet or SSH.
The supported PROFINET protocols, such as LLPD, DCP, or even diagnosis alarms, can be easily configured and administered.
Neighborhood detection
Ring redundancy
Each port can be activated or deactivated
Diagnostic messages for network problems
Identification and maintenance data
PROFINET Conformance Class B
Connects upto 4,8, 16 participants of PROFINET Network
Port mirroring
Time synchronization via SNTP
